The Compact cylinder is designed to be space saving and compact product. Dynamic Hydraulics provides various sizes of Compact cylinder. • Hardened and chromed alloy steel piston rods run longer with less wear • Wiper seals reduce contamination of dust for the longer runs of the Compact cylinder • Special coating on the cylinder body helps prevent rusting and scratching

Specifications

• Minimum operating pressure: 10 Bar • Maximum operating pressure: 150 Bar • Operating temperature: 10 - 70 °C

Product Code: DC
Share this product

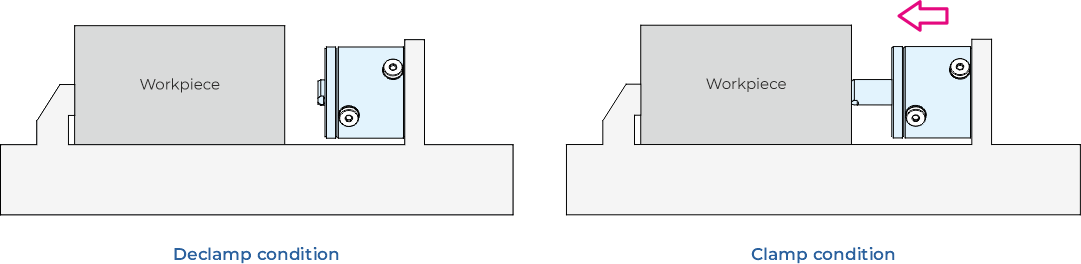

Compact cylinder



All dimensions are in mm except otherwise specified.

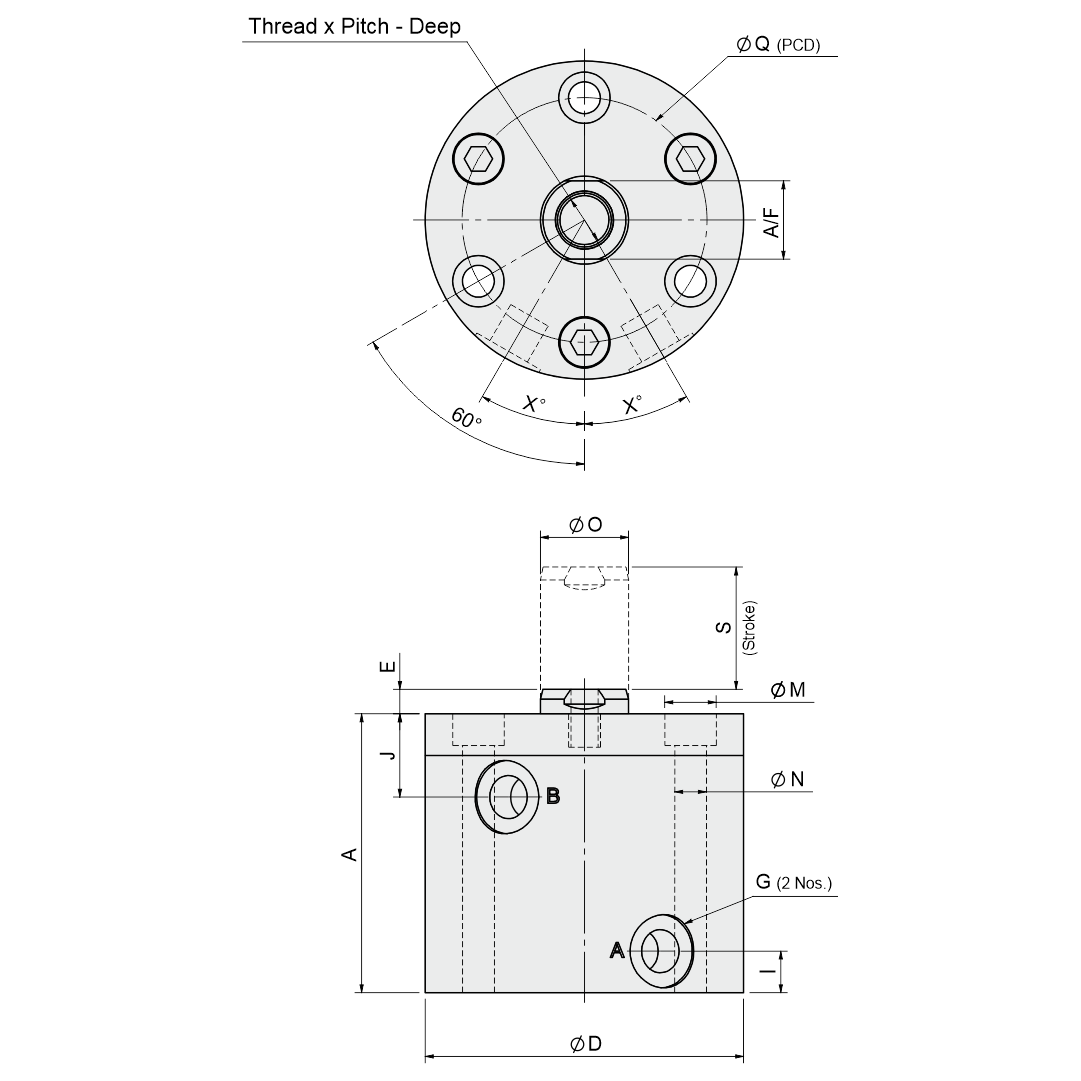

Model No. Stroke Piston (Bore)Ø A ØD E G I J ØM X Deep ØN ØO (Rod) ØQ (PCD) Thread X Pitch - Deep A/F X° Oil Volume Pushing (cc) Oil Volume Pulling (cc) Pushing Force (Kg.) Pulling Force (Kg.)
DC - 020 010 025 20 36 51 45 5 G1/8" 9 15 7.5 X 4.5 4.5 12 35 M6 X 1 - 10 10 30 30 3 8 2 5 471 301
DC - 032 010 025 050 32 42 57 82 65 5 G1/8" 8.5 17 10.5 X 6.5 6.5 18 50 M10 X 1.5 - 18 16 30 30 0 8 20 40 6 14 28 1206 824
DC - 040 010 025 050 40 50 65 90 76 6 G1/4" 12 22 13.5 X 8.5 8.5 22 60 M12 X 1.75 - 20 19 30 30 0 13 31 63 9 22 44 1885 1314
DC - 050 010 025 050 50 56 71 96 95 6 G1/4" 12 26 16.5 X 10.5 10.5 25 75 M16 X 2 - 30 22 30 30 0 20 49 98 15 37 74 2945 2209
DC - 063 025 050 63 82 107 120 6 G1/4" 12 26 16.5 X 10.5 10.5 28 96 M16 X 2 - 30 25 30 0 0 78 156 0 63 125 0 4676 3752

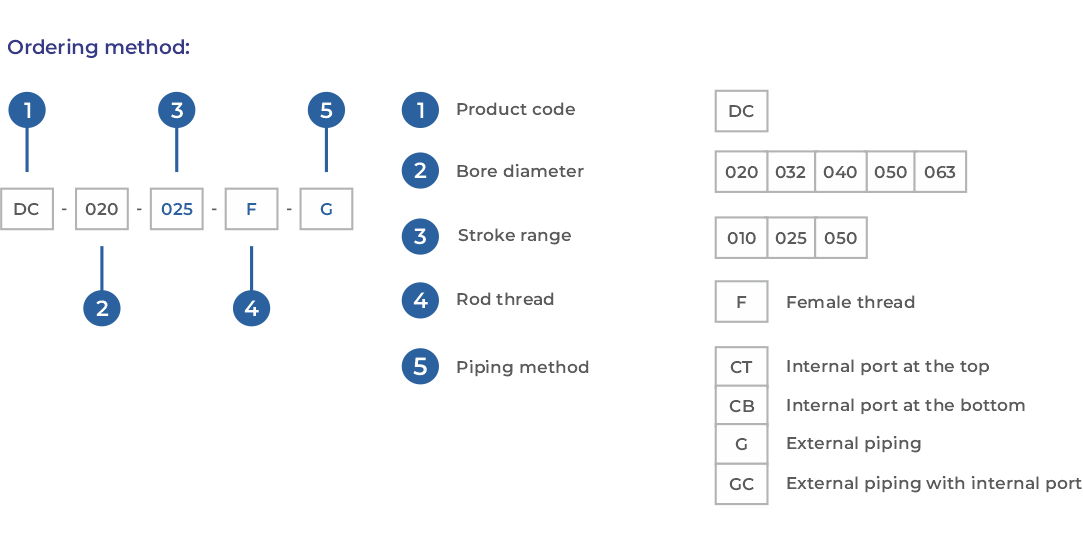

Ordering Method: Product Code - DC

Note:

Actual force may vary by 10% - 15% due to friction loss.

Warning:

Operating above 150 Bar may damage the Compact cylinder and will void the warranty.
